Products: Single Side / Flat Lapping Machines: SSM Series
Single Side Lapping Machines: SSM -3R / L / D / P / VS / A / W
- Only manufacturer to design and provide a rigid Spindle Housing, hardened spindle with heavy duty bearings lubricated for life.
- The geared motor is attached to the bottom of the Spindle housing. The spindle shaft enters the gearbox and is firmly attached and secure.
- The entire axial load from the top including the weight of lap plate, rings, dead weights/pneumatic pressure and all are taken up by the center plate and the bearings directly.
- This design directly increases the life of the gearbox and ensure trouble free running for life. The gearbox is lubricated for life.
| Machine Nomenclature | Ø Lap Plate | No.of Rings | Rind i.d. | Motor Power | Process Timer | Table Top/ Floor model |
|---|---|---|---|---|---|---|
| Dual Plate Lapper 6” | 152 | Nil | N/A | 0.25 | 1sec – 99hrs | Portable |

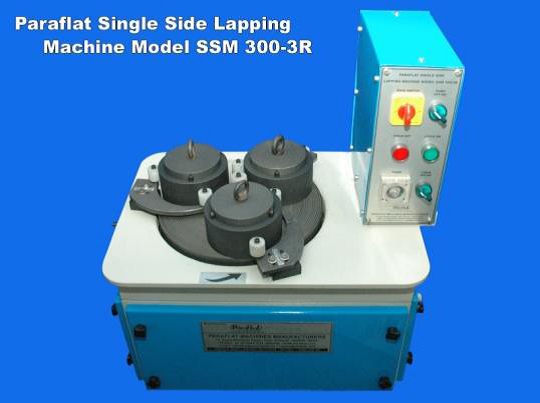

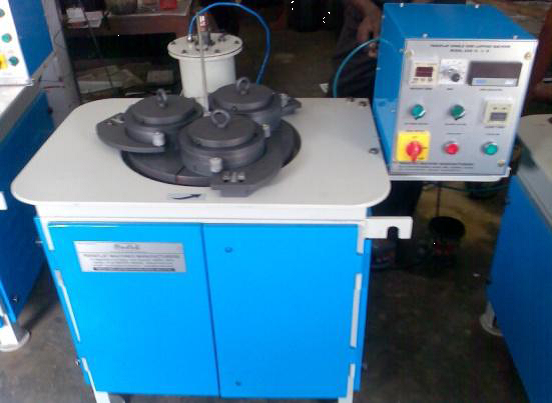

| SSM 300 | 305 | 3 | 105 | 0.5 | 1sec – 99hrs | Table Top |
| SSM 15” | 381 | 3 | 140 | 0.5 | 1sec – 99hrs | Floor |
| SSM 400 | 465 | 3 | 175 | 1.0 | 1sec – 99hrs | Floor model |

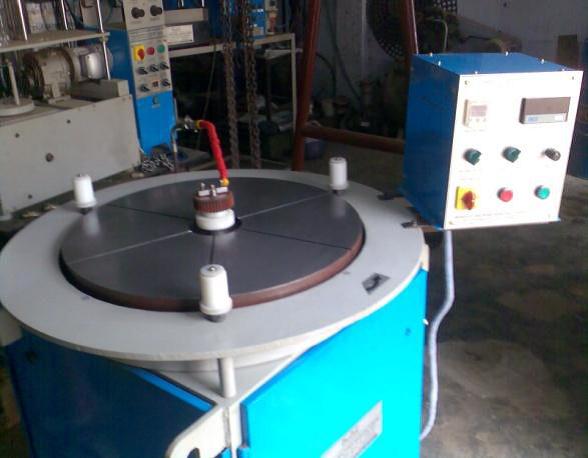

| SSM 600 | 610 | 3 | 250 | 2.0 | 1sec – 99hrs | Floor model |
| SSM 800 | 812 | 3 | 305 | 3.0 | Same | Same |

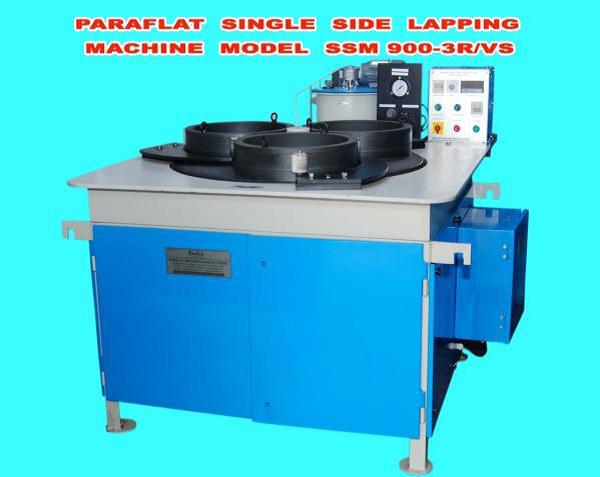

| SSM 900 | 914 | 3 | 350 | 3.0 | Same | Same |
| SSM 1200 | 1220 | 3 | 457 | 5.0 | Same | Same |
3R – 3 Nos. of Rings, Optionally 4R – 4 Nos of Rings can be given, but i.d. will change.
L : This is generally for standard Lapping with abrasive slurries, and is understood and not given in the model nomenclature
D : For Diamond Lapping or Polishing, any type of lap plate, CI, Cu, Al, Glass, etc. This is named as Hard Lapping or Polishing
P : For Soft polishing of parts with Polishing pads and fine abrasive slurries.
VS : With variable speed drive thru VFD
A : Pressure by Air / Pneumatic Cylinders in lieu of dead weights
W : Water cooled base for the lap plate
- The size of the machine is decided on the output of the part to be lapped or polished.
- The type of lap plate and its groove pattern is decided based on the final output parameters to be achieved after the lapping or polishing process
- The type of rings, with antifriction base or without antifriction base is decided based on the process selected.
- Material of the conditioning rings may also vary based on the process selected.
- In some unique cases the dead weights act as rings and no rings are provided.
